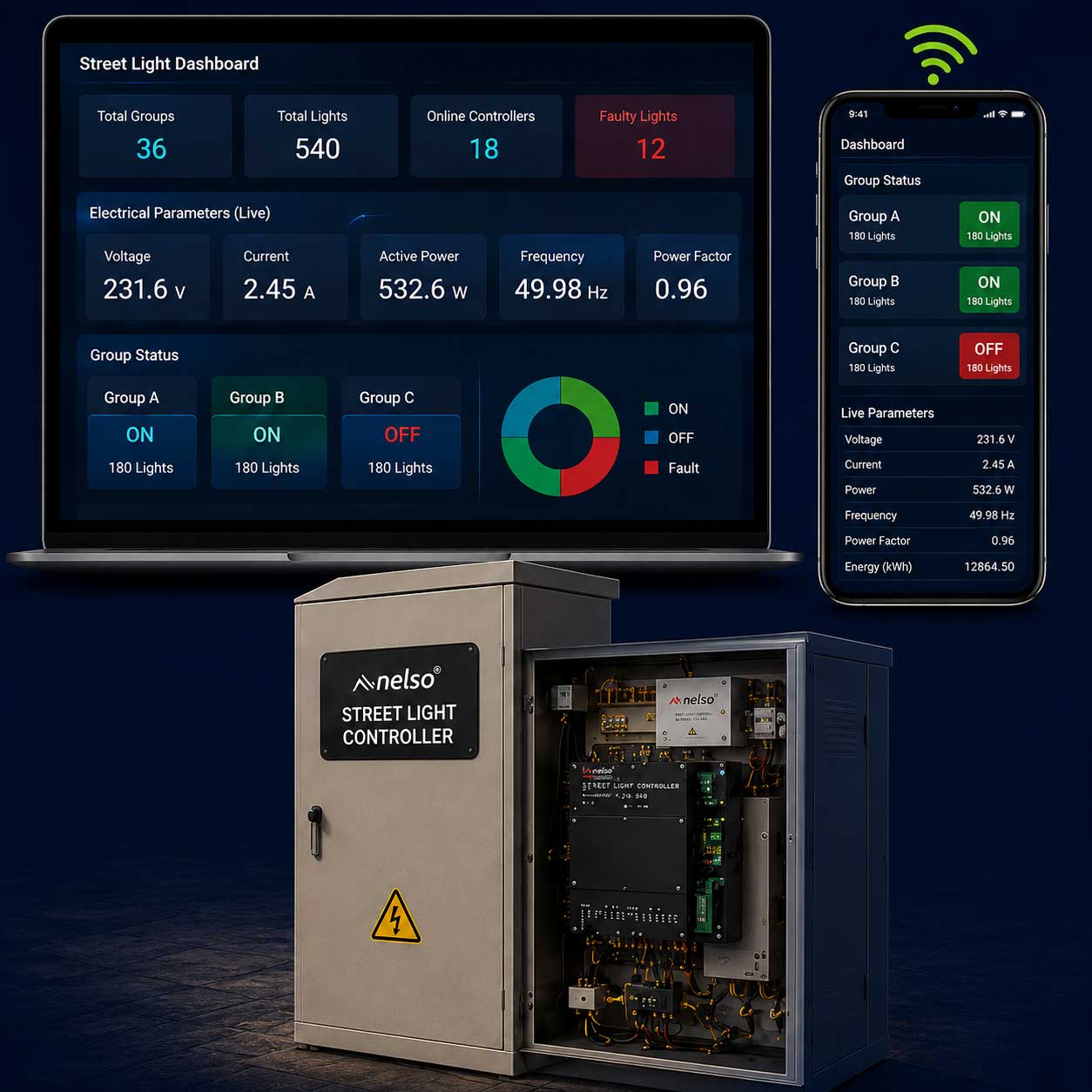

• GSM Street Light Controller

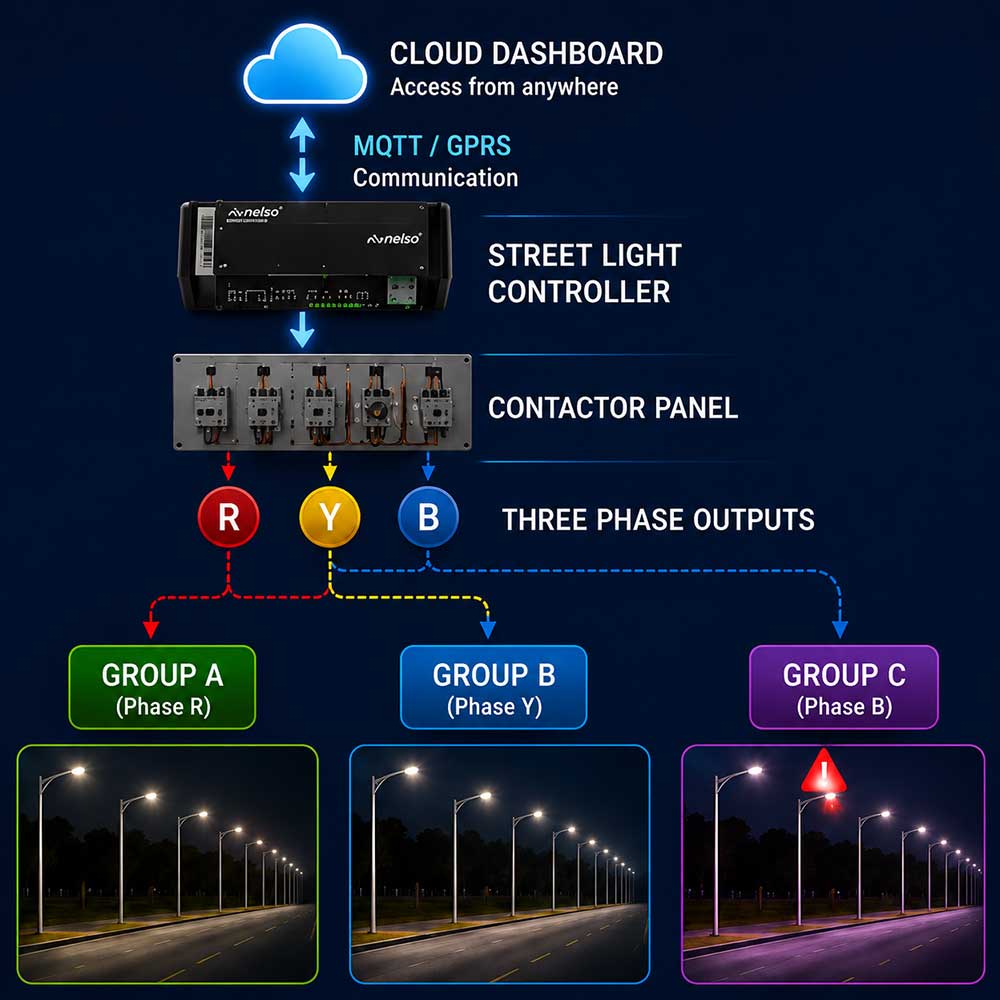

  • street light system diagram
  • street light dashboard

IoT GSM/GPRS-based Street Light Control and Monitoring System

The IoT GSM/GPRS-based Street Light Control and Monitoring System is a state-of-the-art solution that enables smart city infrastructure management. By leveraging the power of Internet of Things (IoT) technology, GSM (Global System for Mobile Communications) and GPRS (General Packet Radio Service), this system allows municipalities to remotely control and monitor street lighting in real-time, optimizing energy consumption and ensuring efficiency. This document outlines the key features of the IoT-based system, including remote control from a central location, data monitoring through a dashboard, and customizable scheduling capabilities for individual street lights.

Where to buy

Key Features

1. Remote Control and Management

  • Centralized Control: The system allows operators to manage all street lights from a central location, eliminating the need for manual intervention at each individual unit. This improves operational efficiency and reduces labour costs.
  • On/Off Control: Street lights can be remotely turned on or off based on real-time requirements or scheduling preferences.
  • Fault Detection: The system can send alerts when a street light fails or experiences a malfunction, ensuring quick resolution and minimizing downtime.

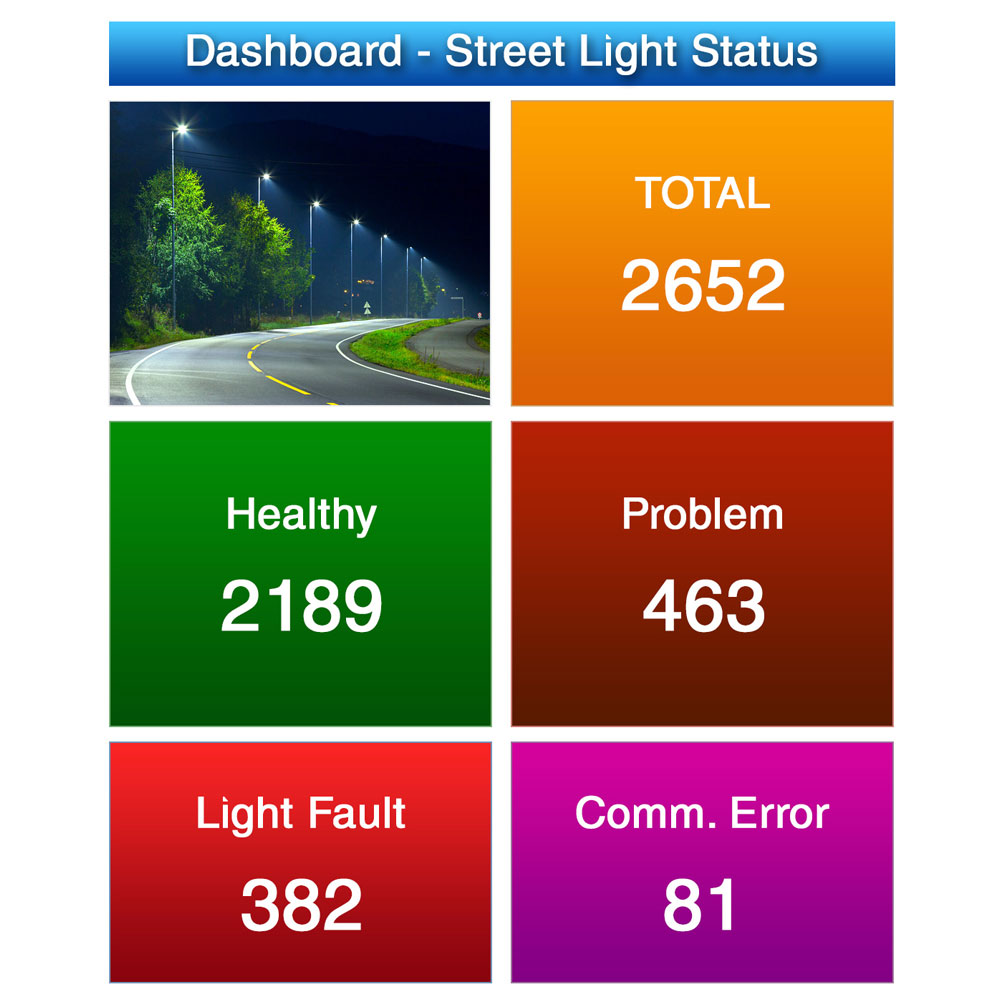

2. Real-Time Monitoring via Dashboard

  • Voltage Monitoring: The dashboard displays the real-time voltage levels for each street light.
  • Current Measurement: Current usage is continuously monitored, providing insights into energy consumption.
  • Power Usage: Tracks real-time power consumption for detailed energy usage analysis.
  • Energy Consumption Tracking: Enables better budget planning and resource allocation.

3. Scheduling and Automation

  • Customizable Schedules: Set custom schedules for individual street lights or groups of lights.
  • Time-based Control: Lights operate based on specific time intervals like dusk to dawn.

4. GSM/GPRS Communication

  • Wireless Communication: Utilizes GSM/GPRS for efficient communication.
  • SMS Alerts: Sends SMS alerts for faults or malfunctions.
  • Remote Configuration: Operators can update system settings remotely.

Conclusion

The IoT GSM/GPRS-based Street Light Control and Monitoring System offers a highly efficient, scalable, and cost-effective solution for managing street lighting. By integrating remote control capabilities, real-time monitoring, scheduling, and energy efficiency features into one unified system, municipalities can ensure that their street lighting infrastructure operates smoothly, sustainably, and economically.

Rating & Reviews

Have a question?

GSM based Street Light Controller Application Area

Smart City

Industry

Factories

Technical Specification

Network GSM/GPRS
Band Quad-band: EGSM 900 / DCS 1800 and GSM 850 / PCS 1900 Mhz
Transmitting Power Class 4 (2W) at EGSM 900 / GSM 850
Class 1 (1W) at DCS 1800 / PCS 1900
Supply Voltage 230 V AC, 50 Hz.
Internal Voltage 12V DC
Output 2 potential free relay contact
Contact rating 20 Amp. for each relay
Power Consumption 1.2 Watt
Monthly Consumption 1 Unit
Temperature -20 to + 70 degree Celsius
Dimension 287mm * 158mm * 62mm.
Weight 900 gm.
